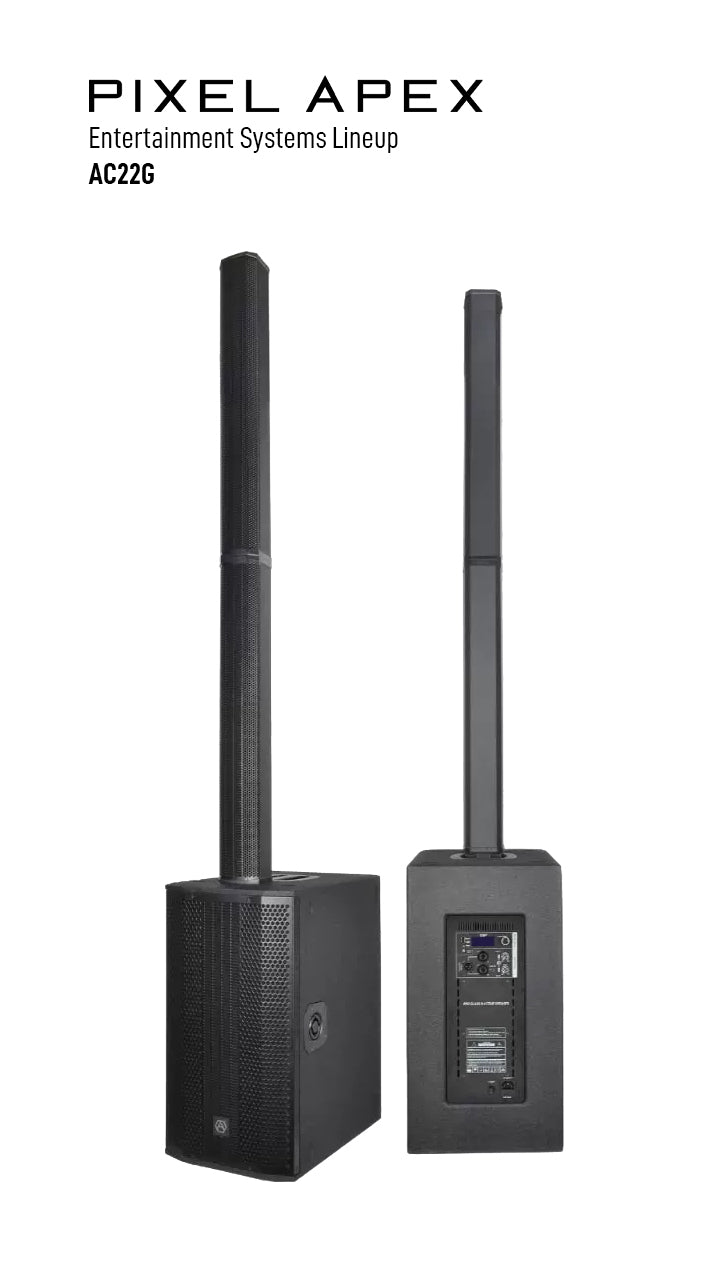

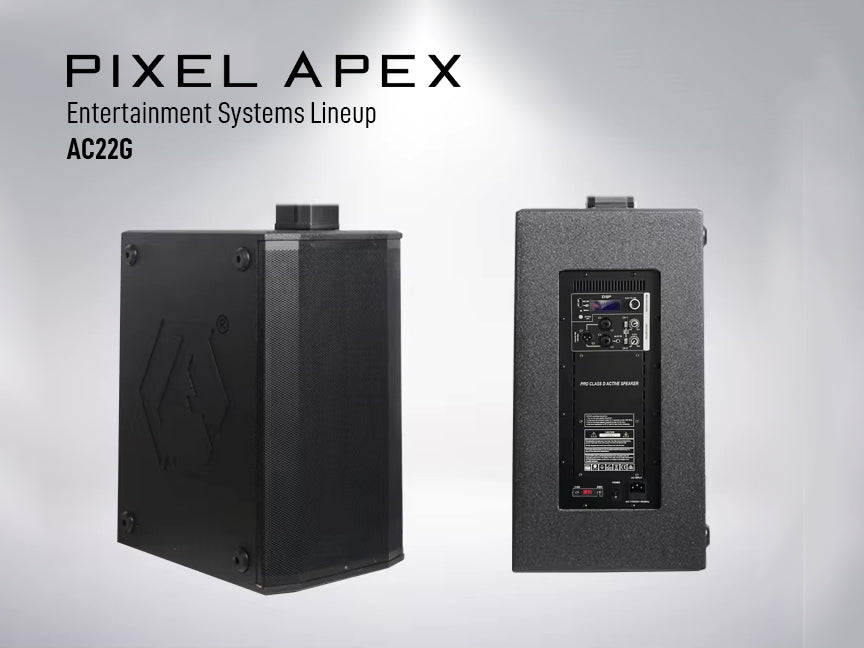

Pixel Apex Column Array Audio System — AC22G Series
Pixel Apex Column Array Audio System — AC22G Series
The Pixel Apex AC22G Professional Audio System is engineered for event professionals who understand that unforgettable experiences demand more than visual impact alone.
Designed for weddings, nightlife venues, mobile entertainers, corporate events, live performances, and premium hospitality environments, the AC22G delivers powerful low-frequency response, articulate vocal clarity, and wide-format sound dispersion that fills a room with confidence.
Its modular column design allows for streamlined transport, rapid deployment, and a clean professional footprint—making it ideal for both permanent installations and mobile productions.
Built for those who demand premium output, precision clarity, and commanding presence—without paying for a name alone.
As part of the Pixel Apex Entertainment Systems lineup, the AC22G integrates seamlessly with our LED DJ booths, intelligent lighting environments, illuminated dance floors, and custom media solutions.
This audio unit is ideal for the traveling musician looking for the ultimate transportable system that will make them stand out from the rest. While one unit is plenty in most settings, pairing up multiples will extend performance reach throughout convention-sized rooms.

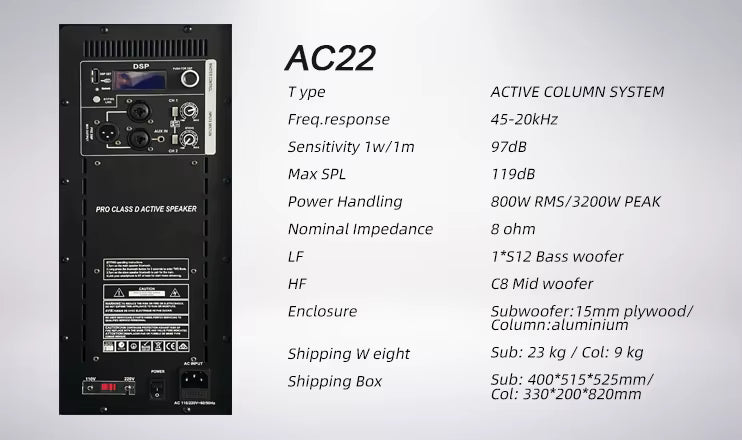

- 800 Watt RMS /3200Watt PEAK
- Amplifier Type: Class D
- DSP Mode: DSP Control function
- Low frequency rated power: 400W (4ohms/100Hz@THD+N1%)
- Full-frequency rated power: 400W (4ohms/8khz@thd+n1%)
- Input sensitivity: Line, - 10dB; Microphone: - 35dB
- Bluetooth Version: 5.0
- Panel Size: 380*160mm
|
Art.No.
|
AC22G
|
|
Type
|
Column PA System
|
|
Subwoofer
|
2 x 10" Bass reflex
|
|
Full range
|
MF: column 8 x 3"
|
|
Amplification
|
Class D
|
|
Dispersion(H x V)
|
120° x 40°
|
|
Power output(RMS/peak)
|
800 W/3200W
|
|
Frequency range
|
45Hz-20KHz
|
|
Max SPL(peak)
|
119 dB
|
|
Protection
|
DSP multiband limiter plus short circuit, over-current and thermal protection
|
|
Controls
|
Main level, mic level, line level, Power on/off switch, DSP control level
|
|
Indicators
|
On, signal, limit, protect, signal, limit, protect (protection circuit engaged), signal, on, limit, Setup
|
|
Subwoofer connectors
|
2 x XLR/6.35 mm combo line inputs, XLR/6.35 mm combo mic input, XLR system out
|
|
Line Input
|
2 x XLR/6.3 mm Jack Combo
|
|
Mic inpu
|
2 x XLR/6.3 mm jack Combo
|
|
Satellite
|
Custom made multi pin connector
|
|
Cabinet material
|
Subwoofer: 15 mm plywood / Column: aluminium
|
|
Dimensions(W x H x D)
|
Subwoofer: 400 x 515 x 525 mm / Column (2 pcs): 330 x 200x820mm
|
|
Weight
|
Subwoofer: 23 kg / Columns (2 pcs): 9 kg
|
