P3.9 16ft x 9ft LED Indoor Video Wall

3.91mm Indoor LED Video Wall – 16x9 ft | 10x3 Cabinet Setup (500x1000mm)

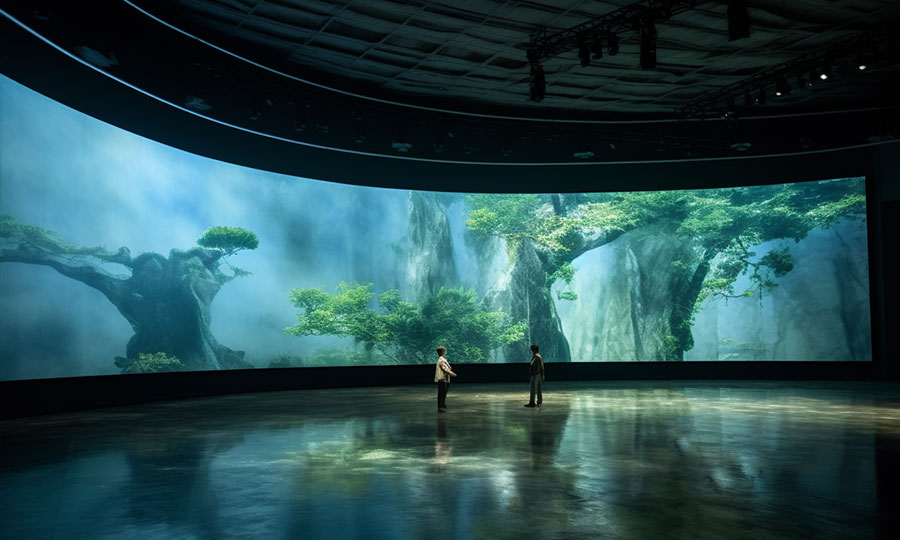

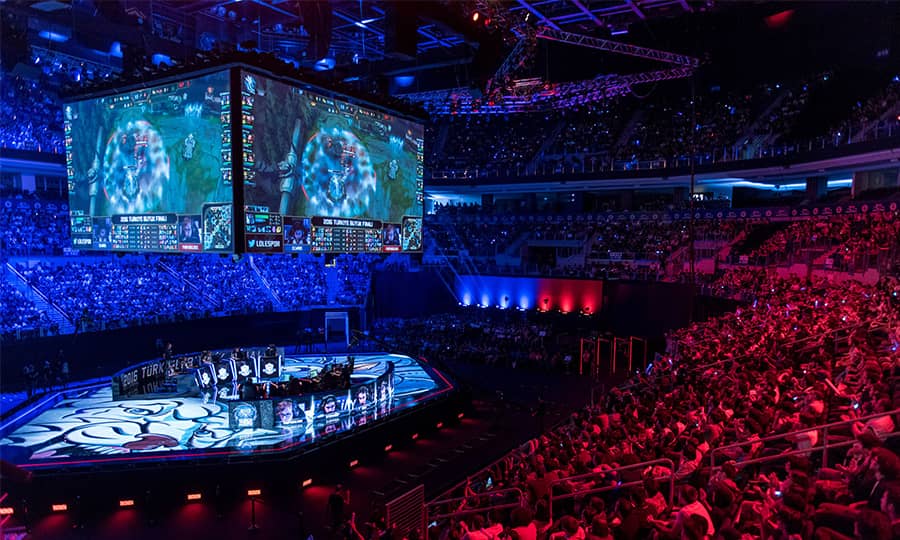

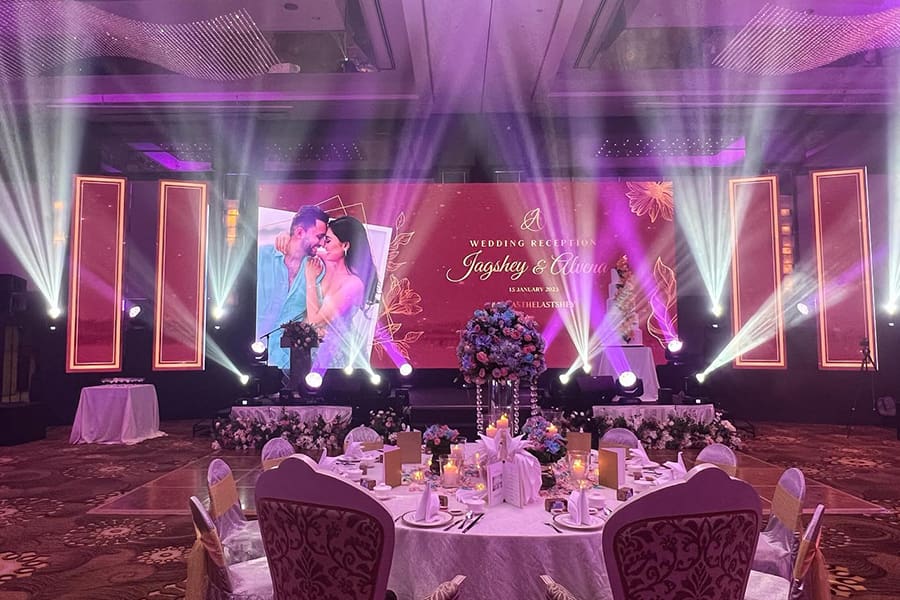

Create an immersive visual experience with this high-resolution P3.91 Indoor LED Video Wall, configured for a 16 ft x 9 ft display using 30 die-cast aluminum cabinets (10 wide × 3 tall). Perfect for churches, trade shows, DJs, and permanent installs, this wall offers superior performance and clarity for all indoor environments.

 Configuration:

• Cabinet Size: 500mm x 1000mm (19.7" x 39.4")

• Cabinet Quantity: 10 wide × 3 tall = 30 cabinets total

• Final Wall Size: 5,000mm × 3,000mm (16.4 ft × 9.84 ft)

• Total Area: ~48m²

 Technical Specifications:

• Pixel Pitch: 3.91mm

• LED Type: SMD1921

• Pixel Density: 65,536 pixels/m²

• Module Resolution: 64 × 64

• Module Area: 0.32m²

• Brightness: 800 cd/m²

• Viewing Angle: 160° Horizontal / 160° Vertical

• Refresh Rate: ≥3840Hz

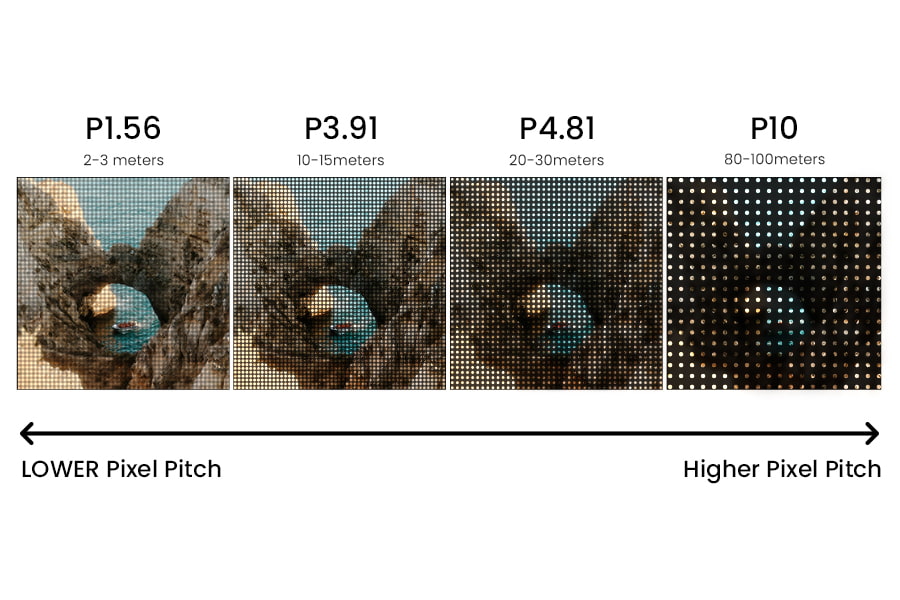

• Best Viewing Distance: 3m to 45m

• Scan Mode: 1/16

• Power Consumption: Max 800W/m², Avg 400W/m²

• Input Voltage: 110V / 240V AC

• Weight per Cabinet: 8kg

• Ingress Protection: Front IP65 / Back IP40

• LED Lifespan: ≥100,000 Hours

• Defect Rate: ≤0.0001

• Operating System Compatibility: Windows 98 / XP / 2000 and more

• Warranty: 1 Year

• Certifications: CE, FCC, RoHS, CCC

 Included in Package:

• 30x P3.91 LED Cabinets (500mm x 1000mm)

• Nova Receiving Cards


• Power & Signal Cables

• Nova LED Playback Software

• Category 6 Shielded Network Cables

• Aviation Power Cords

• Main Network & Power Cables

• Flight Case Packaging

• Spare Parts: 40 Modules, 2 Receiving Cards, 2 Power Supplies

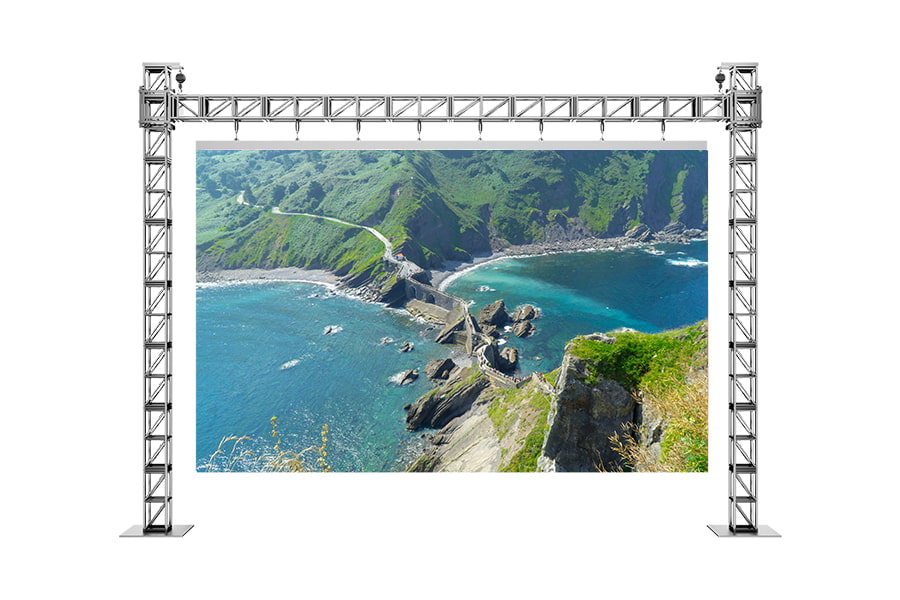

Video processor and fly bars available as optional add-ons.

For a personalized quote, please contact us today and let us help you make your vision a reality.

SPECIFICATIONS

• Product Model: P3.91
• Pixel Pitch: 3.91 mm
• Module Size: 500*1000mm
• Weight: 33 lbs
• Environment: Outdoor
• Cabinet Resolution: 128*128 dot(s)
• Pixel Dot Density: 65536 dot/m2
• Material Quality: Die-cast aluminum back cover + aluminum substrate
• Cabinet Material: Aluminum profiles/Iron profiles
• Brightness: 700-1000 nits
• Refresh Rate: 3840Hz
• Best Viewing Distance: 3m - 45m
• Operating Life: 100,000 hours
• Power Consumption (max/avg): 400/160 w/m2
• Input Voltage (AC): 110V / 240V
• Defect Rate: ≤0.0001
• Packaging: Flight Case/Wooden Case
• Warranty: 1 year
• Certificate: CE, FCC, CCC

WHAT YOU ARE GOING TO GET

✅ 12 Panels 500x1000mm P3.91

✅ 1x 9.8ft x 6.75ft LED Video Wall

✅ 12 Powercon Link Cable

✅ 12 Ethernet Cable

✅ Set of Steel Plates and Screws for Support

✅ 2 Road Cases (fits accessories and six 500x1000mm panels each)

✅ Novastar CMS260
